Base station estimote cc2640 BLE bluetooth 4.0 positioning iBeacon module

FOB Reference Price:Get Latest Price
US $3-6 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AXAET
Model Number:
PC023
Size:
42.4x47x6.7mm
Color:
Black/White/red/pink/blue/green/silver
Warranty:
12 Months
Produt name:
iBeacon
Connect By:
Bluetooth4.0
Use for:
Android phone and iPhone
Chip:
TI
Bluetooth range:
0-33 ft
Battery:
CR2016
Battery life:
6 months
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Color Gift Box
Port
Shenzhen/Hongkong
Lead Time :
3 Working Days



Base station estimote cc2640 BLE bluetooth 4.0 positioning iBeacon module

Product Description


Features of iBeacon:

1. Easy and Rapidly to customize a casing in very low cost.

2. UUID,Major,Minor, Pairing Password and other parameters can be modified by customer.

3. iBeacon with bar code and easy for recognize.

4. Adopt CR2032(200mAH) and CR2016(100mAH) coin battery.

5. Support Wechat shake function access.

6. Different design and various color.



 Technical of iBeacon:



Item

Parameter

Remark

Color

Black,White



Dimension

38.5*9mm



Weight

12g



Protection

Waterproof, Anti-dust, anti-vibration



Protocol

IOS iBeacon protocol

Bluetooth 4.0

Battery

CR2032

iBeacon Special Battery

Voltage

3.0VDC



Transmit Power

0dBm

-23~0dBm Adjustable

Broadcasting Frequency

1000ms

100~2000ms Adjustable

Compatible System

iOS7.0+/Andriod 4.3+



Upgrade

Support Air Upgrades



Safety

Support Password Connect And Disconnect

Support Anti Malicious Connection Function

Transmit Distance

5-120m(Open Air)

Diameter Range

Standby

6-36Months

Depends On Broadcasting Frequency



Product Show

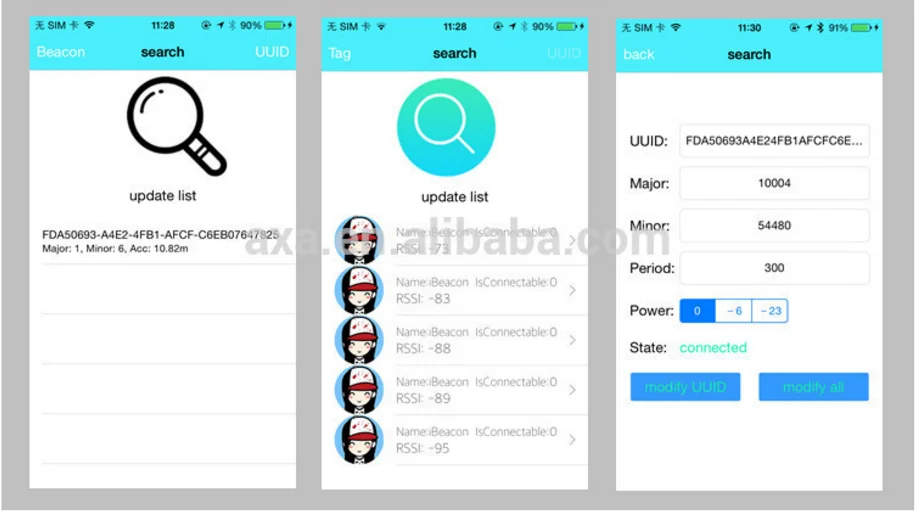

Interface Of iBeacon

1.Download “AXABeacon” APP from Google Play or Apple Store for parameters modifying.

2.Support standard iBeacon broadcasting protocol of Apple company, support dynamic modification of

UUID/ Major/ Minor/ Beacon name/ Password.

3.Default Beacon name is pBeacon; Default password is"123456", if password changed, please remember for next modifying.

4.Support Broadcast Interval 100ms-9000ms (Broadcast interval is integral multiple of 50ms).

5.Support Bluetooth 4.0 & Android 4.3/ iOS7.0 above version system.



Default Parameter

Parameter

Default Value

UUID

FDA50693-A4E2-4FB1-AFCF-C6EB07647825

Measured power

Default 0dBm

Transmission Power

-23To 0dBm(Default:0dBm)

Change Password

8 Characters(Letter Or Number)

Broadcasting Interval

100-9000ms(Default:1000ms)

Serial ID

0-65535 Random

iBeacon Name

1-14 Characters,Default: AXAET Beacon_

Connection Mode

Yes(Connect)No(Disconnect)

Soft Reboot

Default Password:123456

Battery Service

The Front Battery Symbol, 100% Power
